Dynamic Definition

The Dynamic Definition algorithm allows us to sample probability distributions when storing the full-state probability is not tractable (due to memory requirements).

The algorithm as implemented in cutqc2 has 3 parameters:

• A function that returns a probability distribution given a qubit_spec - a string of active (A), merged (M) and conditioned (0/1) qubits. See the merge_unmerge notebook for an introduction on these.

• capacity - the max number of qubits we can mark as active at any point. This is referred to as system memory in Algorithm 1 of the CutQC paper.

• max_recursion - the max recursions the algorithm goes through.

The algorithm is outlined below.

• Initialize empty list probability_bins

• for each DD recursion do

  • if First recursion then

    • Choose subset of qubits of length capacity to label as active;

  • else

    • Choose the bin from probability_bins with the largest sum of probability;

    • Fix the values of active qubits in the bin according to the index of the bin; Label these qubits as zoomed;

  • Label the rest of the qubits as merged;

  • For each state of the zoomed qubits, determine probability vectors (run shots, - group shots with common merged qubits together).

  • Reconstruct the \(2^{active}\) probability output for the active qubits; append to probability_bins;

  • if we’ve reached max_recursion, then return.

In effect, Dynamic Definition maintains a list of probability values (implemented using heapq) of active states, and at each recursion level, chooses to focus on the bin that has the highest cumulative probability mass, ignoring the rest.

Let us see it in action for a 4-qubit BV circuit. This corresponds to Figure 7 in the original CutQC paper.

4-qubit BV Circuit

import numpy as np

from cutqc2.core.dynamic_definition import DynamicDefinition
from cutqc2.core.utils import merge_prob_vector

# Emulate the probability distribution for a 4-qubit Bernstein-Vazirani problem
four_qubit_BV_probability_distribution = np.append(np.zeros(15), 1)

(INFO) (base_tasks.py) (29-Sep-25 19:19:18) Pass: UnrollCustomDefinitions - 0.07200 (ms)
(INFO) (base_tasks.py) (29-Sep-25 19:19:18) Pass: BasisTranslator - 0.01621 (ms)

This circuit produces a single non-zero probability value of 1 at the bitstring index 1111, which we emulate using four_qubit_BV_probability_distribution. We instantiate the DynamicDefinition class by providing it:

• the total number of qubits we’re emulating (4)

• the capacity (set to 1)

• a handle to a function that provides it the coarse-grained probability distribution for any qubit_spec.

dynamic_definition = DynamicDefinition(
    # Bernstein-Vazirani problem with 4 qubits
    num_qubits=4,
    # We choose to have only 1 qubit active at a time
    capacity=1,
    # The probability function is a callable that takes in a "qubit spec"
    # (a string of 0/1/A/M characters), and returns the compressed quantum
    # probability vector by merging/conditioning on specific qubits.
    # The `merge_prob_vector` utility function from CutQC2 is used here.
    prob_fn=lambda qubit_spec: merge_prob_vector(
        four_qubit_BV_probability_distribution, qubit_spec
    ),
)

We then run the Dynamic Definition algorithm for increasing values of max_recursion to see its effects. At each recursion, we call the dynamic_definition.plot(), which plots the probability of every state in a merged bin as the average of the sum of probabilities for that bin.

dynamic_definition.run(max_recursion=0)
dynamic_definition.plot()

(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) Calculating initial probabilities for qubit spec AMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) No more bins to process or max recursion level reached.

/media/vineetb/delta/projects/cutqc2/src/cutqc2/core/dynamic_definition.py:183: UserWarning: Generating all 2^num_qubits states. This may be memory intensive.
  y = self.probabilities(full_states=full_states)

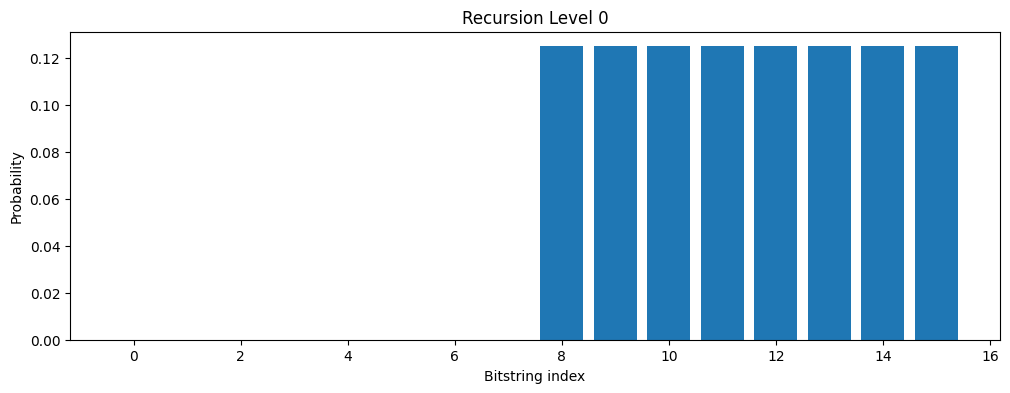

At recursion level 0, the algorithm uses qubit_spec AMMM, determines the probability masses for states 0MMM and 1MMM as 0.0 and 1.0 respectively, and evenly distributes the probability mass of 1.0 from bin 1MMM to all states from 1000 to 1111.

for max_recursion in (1, 2, 3):
    dynamic_definition.run(max_recursion=max_recursion)
    dynamic_definition.plot()

(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) Calculating initial probabilities for qubit spec AMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) recursion_level=1, qubit_spec='AMMM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) No more bins to process or max recursion level reached.

(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) Calculating initial probabilities for qubit spec AMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) recursion_level=1, qubit_spec='AMMM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) recursion_level=2, qubit_spec='11MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) No more bins to process or max recursion level reached.

(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) Calculating initial probabilities for qubit spec AMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) recursion_level=1, qubit_spec='AMMM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) recursion_level=2, qubit_spec='11MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) recursion_level=3, qubit_spec='111M'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:18) No more bins to process or max recursion level reached.

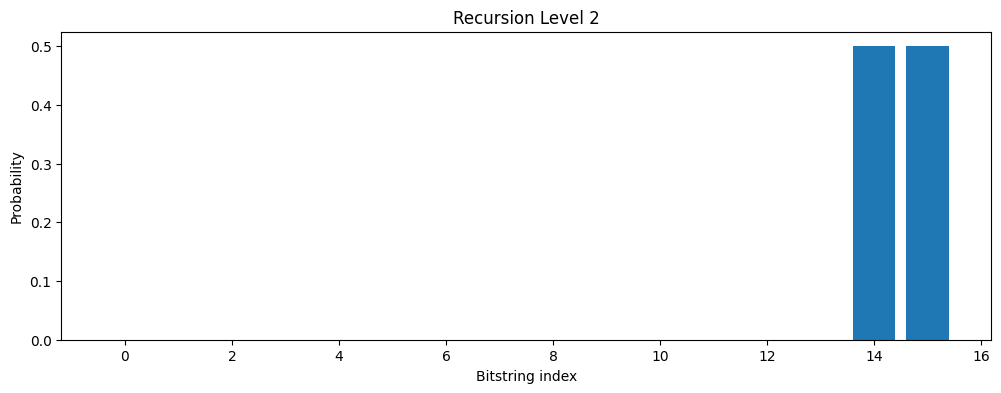

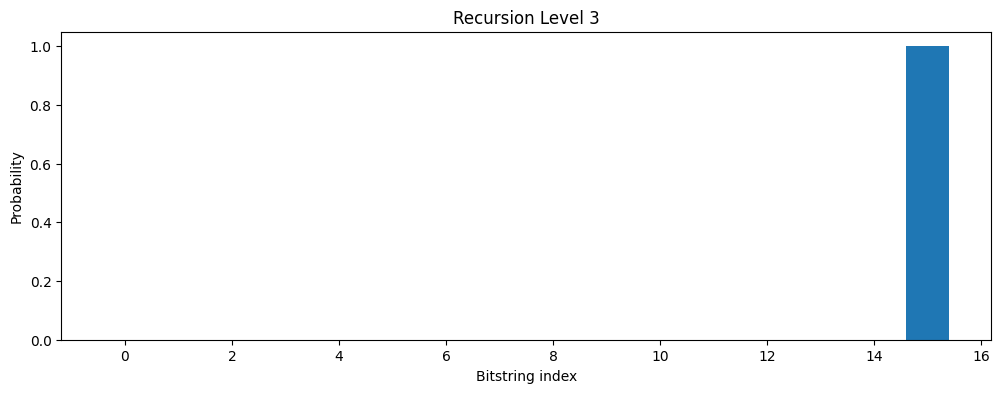

With increasing values of max_recursion, the algorithm is able to concentrate the probability mass (1.0 in this case) to more and more specific states, eventually attributing all of it to the state 1111.

6-qubit Supremacy Circuit

As another example, let’s run Dynamic Definition on a 6-qubit Supremacy Circuit.

from matplotlib import pyplot as plt

from cutqc2.cutqc.helper_functions.benchmarks import generate_circ
from cutqc2.cutqc.helper_functions.non_ibmq_functions import evaluate_circ

circuit = generate_circ(
    num_qubits=6,
    depth=1,
    circuit_type="supremacy",
    reg_name="q",
    connected_only=True,
    seed=12345,
)
ground_truth = evaluate_circ(circuit, backend="statevector_simulator")


def supremacy_probability_distribution(qubit_spec: str):
    return merge_prob_vector(ground_truth, qubit_spec)

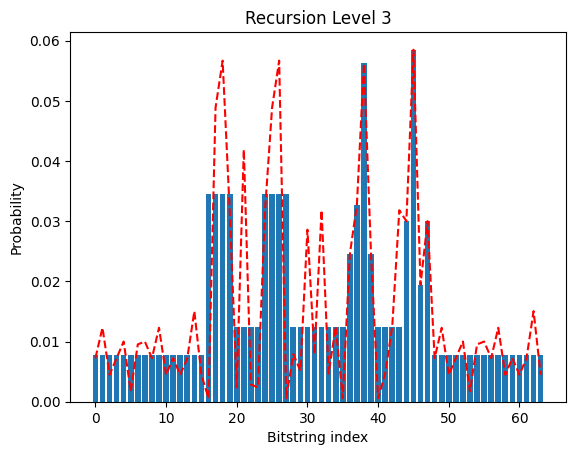

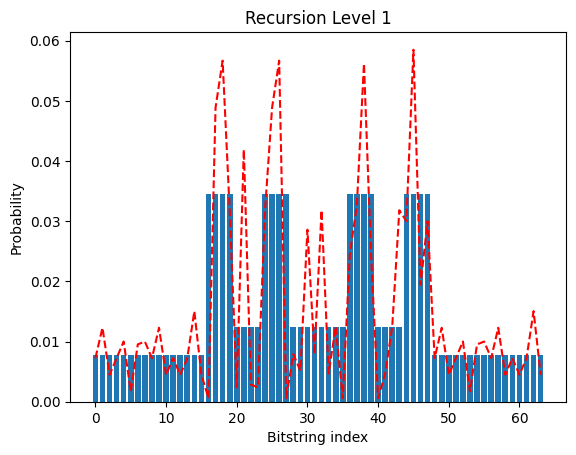

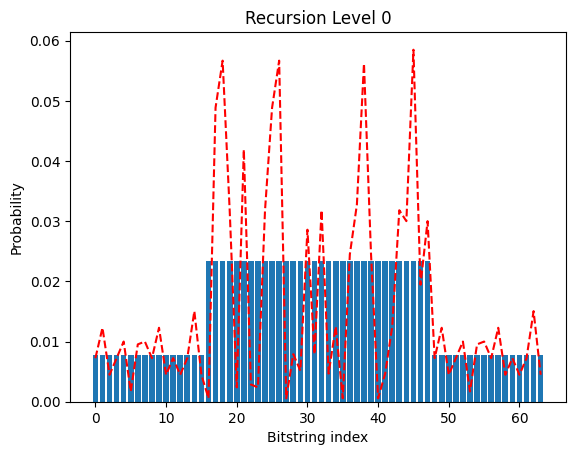

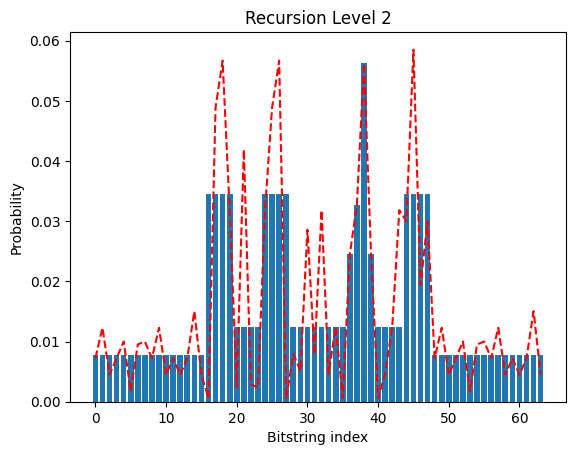

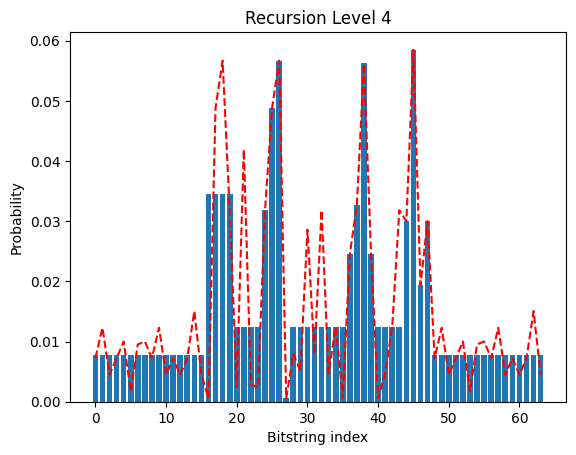

With increasing values of max_recursion, the algorithm is able to approximate the ground truth probability vector better and better. max_recursion beyond 5 has no effect in this case, as there are no bins left to explore beyond that recursion level.

for max_recursion in range(6):
    fig, ax = plt.subplots()
    ax.plot(range(len(ground_truth)), ground_truth, linestyle="--", color="r")
    dynamic_definition = DynamicDefinition(
        num_qubits=6, capacity=2, prob_fn=supremacy_probability_distribution
    )
    dynamic_definition.run(max_recursion=max_recursion)
    dynamic_definition.plot(ax=ax)

(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) Calculating initial probabilities for qubit spec AAMMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) No more bins to process or max recursion level reached.
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) Calculating initial probabilities for qubit spec AAMMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=1, qubit_spec='AAMMMM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) No more bins to process or max recursion level reached.
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) Calculating initial probabilities for qubit spec AAMMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=1, qubit_spec='AAMMMM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=2, qubit_spec='1001MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) No more bins to process or max recursion level reached.
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) Calculating initial probabilities for qubit spec AAMMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=1, qubit_spec='AAMMMM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=2, qubit_spec='1001MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=3, qubit_spec='1011MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) No more bins to process or max recursion level reached.
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) Calculating initial probabilities for qubit spec AAMMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=1, qubit_spec='AAMMMM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=2, qubit_spec='1001MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=3, qubit_spec='1011MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=4, qubit_spec='0110MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) No more bins to process or max recursion level reached.
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) Calculating initial probabilities for qubit spec AAMMMM
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=1, qubit_spec='AAMMMM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=2, qubit_spec='1001MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=3, qubit_spec='1011MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=4, qubit_spec='0110MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) recursion_level=5, qubit_spec='0100MM'
(INFO) (dynamic_definition.py) (29-Sep-25 19:19:19) No more bins to process or max recursion level reached.
