9.1 ISC-CI Model

The ISC-CI model introducing a mechanism for context inference, based on the key assumption that temporal co-occurrence provides a useful basis for inferring shared context. Specifically, it assumes that (1) objects occurring together in a given context tend to share the properties elicited by that context; (2) these co-occurrence statistics are learned over the course of development; and (3) this implicit knowledge provides a basis for inferring, from a few examples of objects encountered in a new context, both which features are relevant in that context and what other objects are likely to occur in that context.

To make these ideas clear, consider the contexts in which you might encounter different kinds of birds: a bird-watching field trip in science class, a visit to the bird section of the zoo, and a picture book about birds. Each situation involves multiple types of birds (e.g., robins, crows, and ravens) and exposure to multiple bird-related properties (e.g., can-fly, eats-worms, is-bird) in various combinations. After these experiences, encountering a new context in which birds are relevant (e.g., learning that crows and ravens have hollow bones in the bird section of the Natural History museum) is likely to be interpreted as relating specifically to birds and their properties, implying that other birds like robins may also occur in this new context, and that they will share similar properties (e.g., robins also have hollow bones).

Conversely, contexts such as a science lesson on aerodynamics, a visit to a flight exhibit at a science museum, and a film on the history of flight are likely to involve multiple types of flying things (e.g., crows, airplanes, and butterflies) and flight-related properties (e.g., can-fly, has-wings, seen-in-the-sky). This suggests that a new context involving flying objects such as crows and airplanes (e.g., learning that crows and airplanes are associated with Bernoulli’s principle) likely relates to all things that can fly, implying that other flying things like butterflies may also occur in this new context and, again, share similar properties (e.g., butterflies are also associated with Bernoulli’s principle).

Thus, the properties shared by items encountered in a situation can provide a clue about what the current context is, what properties are currently important, and what other items are likely or unlikely also to be observed. The central hypothesis embodied by the ISC-CI model is that learning such environmental structure can support future inferences about which features might be relevant in novel contexts, based on the distribution of items that co-occur in those contexts. That is, observing that a new context involves a certain set of objects (e.g., both robins and airplanes) provides evidence that certain features will be context-relevant (e.g., can-fly and has-wings), but not others (e.g., lays-eggs), based on past experience.

Importantly, this process is graded and probabilistic rather than absolute, as any given set of objects can co-occur in different contexts at different frequencies. In particular, features that are broadly true of many objects are less likely to be relevant in a new context than features that are true of the more limited set of objects seen in that context (Griffiths et al., 2010; Xu & Tenenbaum, 2007). This is because there is a low likelihood of observing any particular set of objects in a broad context: there are many animals, but few Corvidae, so it is more likely that a context involving both crows and ravens relates to Corvidae specifically than it is that this context relates to animals in general. This is because the probability of observing both crows and ravens in the context of animals is lower than the probability of oberseving both crows and ravens in the context of Corvidae.

Setup and Installation:

%%capture
%pip install psyneulink

import psyneulink as pnl
import pandas as pd
import random

Generating the Training Data

Feature Co-occurrences

We design a training environment that simulates experiencing object co-occurrences throughout learning under the key assumption noted just above. The environment consisted of a series of episodes corresponding to different contexts. Each context involved a set of objects that share a common semantic feature (e.g., things that are birds, things that can fly, things that are found in the zoo, etc.), with each feature represented by a single output unit as implemented by the feature labels in the ISC-CI model.

We generate the episodes using the objects and features in the Leuven Concepts Database (De Deyne & Storms, 2008; Storms, 2001; Ruts et al., 2004). That database contains a matrix of binary judgments provided by human raters indicating, for each object-feature pairing, whether the object possess the feature (e.g., does a bear weigh more than 100lbs? Are kangaroos found in zoos?).

Let’s explore the dataset

FEATURE_PATH = 'https://raw.githubusercontent.com/PrincetonUniversity/NEU-PSY-502/refs/heads/main/data/isc_ci/features.csv'

feature_df = pd.read_csv(FEATURE_PATH, index_col=0)

feature_df.head()

	is small	is a bird	is an animal	is big	can fly	is an insect	mammal	is a fish	lays eggs	is brown	...	is for all ages	you can play different notes whit it	can be used to put something in	can be bought in sports store	costs a lot of money	drives above the ground	driven by 1 person	used in water	used in the house	worn often
monkey	0	0	1	0	0	0	1	0	0	0	...	0	0	0	0	0	0	0	0	0	0
beaver	0	0	1	0	0	0	1	0	0	1	...	0	0	0	0	0	0	0	0	0	0
bison	0	0	1	1	0	0	1	0	0	0	...	0	0	0	0	0	0	0	0	0	0
dromedary	0	0	1	1	0	0	1	0	0	1	...	0	0	0	0	0	0	0	0	0	0
squirrel	1	0	1	0	0	0	1	0	0	1	...	0	0	0	0	0	0	0	0	0	0

5 rows × 385 columns

🎯 Exercise 1a

As stated above, a context is defined by the common feature shared by the objects in that context. For this dataset, which objects might occur in the “eats mice” context?

✅ Solution

We can find the objects that might occur in the “eats mice” context by filtering the dataset for the feature “eats mice” and extracting the corresponding object names:

eats_mice = feature_df[feature_df['eats mice'] == 1].index.tolist()

🎯 Exercise 1b

As stated above, encountering different objects in the same episode provides evidence to the agent that they are in a specific context. For this dataset, which context might be defined by the object “owl” (and which by “falcon”)?

✅ Solution

The contexts are defined by the features of the objects:

contexts_owl = feature_df.columns[feature_df.loc['owl'] == 1]
contexts_falcon = feature_df.columns[feature_df.loc['falcon'] == 1]

print('Contexts defined by "owl":', contexts_owl)
print('Contexts defined by "falcon":', contexts_falcon)

🎯 Exercise 1c

Objects can appear in various contexts. So for two given objects, they might define multiple contexts. What possible contexts are defined by “owl” and “falcon” together?

✅ Solution

The possible contexts are defined by the features that are shared by “owl” and “falcon”:

contexts_both = feature_df.columns[(feature_df.loc['owl'] == 1) & (feature_df.loc['falcon'] == 1)]
print(contexts_both)

🎯 Exercise 1d

Now (using the theory from above), try to answer the following question: Given an agent experiences an episode with “owl” and “falcon” defining the context. Would the agent be more surprised by encountering a “cat” in this context or “penguin”?

(This is not a straight forward question, and you are not supposed to give a definite answer. Think about different (probabilistic/statistical) features of the world influencing the agent’s prediction).

Tip: Here we make the (unreasonable) assumption that contexts are uniformly distributed. In other words that any episode (being on a bird-watching tour or being in a science lesson) has occurred equally often in the past.

💡 Hint a

In the exercise above, we’ve seen that “owl” and “falcon” can elicit different contexts. But is there a way to “quantify” which of these contexts is more likely to be elicited?

Tip: This depends on how likely it is to encounter both an “owl” and a “falcon” in any of the given contexts.

💡 Hint b

We calculate the probabilities from above:

contexts_both = feature_df.columns[(feature_df.loc['owl'] == 1) & (feature_df.loc['falcon'] == 1)]

context_probabilities = {}

for c in contexts_both:
    objects = feature_df[feature_df[c] == 1].index.tolist()
    nr_objects = len(objects)
    # Simplification (objects are equally likely):
    # The probability for encountering any object is 1 / nr_objects
    # => the probability of 'drawing' two objects is 1 / nr_objects^2
    probability = 1 / nr_objects**2
    context_probabilities[c] = probability

print(context_probabilities)
print()
most_probabl_context = max(context_probabilities, key=context_probabilities.get)
print(most_probabl_context)

💡 Hint c

The code above shows that the most probable context is “eats mice”. But “penguins” don’t eat mice while “cats” do (You can convince yourself by querying the database :). So if the agent encounters a “cat” it should be less surprised than if it encounters a “penguin”.

However, this is just the most probable context. Although “penguin” doesn’t appear in the most probable context of “owl” and “falcon”, this might be offset by “penguin” appearing in more probable contexts than “cat”.

✅ Solution

First, we calculate the probabilities of encountering “owl” and “falcon” in any given context. We normalize these probabilties and use them as weights: We add all the probabilities of contexts where “penguin” also appears vs “cat”:

contexts_both = feature_df.columns[(feature_df.loc['owl'] == 1) & (feature_df.loc['falcon'] == 1)]

context_probabilities = {}

for c in contexts_both:
    objects = feature_df[feature_df[c] == 1].index.tolist()
    nr_objects = len(objects)
    probability = 1 / nr_objects**2
    context_probabilities[c] = probability

# normalize the to get the probabilty of a certain context beeing evoked
sum_probs = sum(context_probabilities.values())
normalized = {c: p / sum_probs for c, p in context_probabilities.items()}

penguin_weight = 0
penguin_nr = 0
cat_weight = 0
cat_nr = 0


for c, v in normalized.items():
    objects = feature_df[feature_df[c] == 1].index.tolist()
    # the context evokes penguin
    if 'penguin' in objects:
        penguin_weight += v
        penguin_nr += 1
    # the context evokes cat
    if 'cat' in objects:
        cat_weight += v
        cat_nr += 1

print(f'penguins({penguin_nr}): {penguin_weight}')
print(f'cats({cat_nr}): {cat_weight}')

Embedding

The ISC-CI model uses as input a word embedding (not a one-hot encoding). This embedding can be interpreted as “context independent” representation. Here, we load the embeddings:

EMBEDDING_PATH = 'https://raw.githubusercontent.com/PrincetonUniversity/NEU-PSY-502/refs/heads/main/data/isc_ci/embeddings.csv'

embeddings_df = pd.read_csv(EMBEDDING_PATH, index_col=0)

chicken_embedding = embeddings_df.loc['chicken']
chicken_embedding

0     0.119731
1     0.987248
2     0.982023
3     0.410961
4     0.451753
        ...
59    0.022675
60    0.326714
61    0.014851
62    0.035483
63    0.982558
Name: chicken, Length: 64, dtype: float64

🎯 Exercise 2

We can ask the same question as above: Can you think about a way of using the embeddings of “owl”, “falcon”, “cat” and “penguin” to quantify weather the agent would be more surprised by encountering a “cat” or a “penguin” in the context of “owl” and “falcon”?

💡 Hint

With word embeddings, we can calculate similarities between words by using the distance.

✅ Solution

We calculate the distance between the embeddings of “owl” and “falcon” to the embeddings of “cat” and “penguin”:

owl_emb = embeddings_df.loc['owl']
falcon_emb = embeddings_df.loc['falcon']
cat_emb = embeddings_df.loc['cat']
penguin_emb = embeddings_df.loc['penguin']

owl_falcon_emb = (owl_emb + falcon_emb) / 2

cat_distance = ((owl_falcon_emb - cat_emb)**2).sum()
penguin_distance = ((owl_falcon_emb - penguin_emb)**2).sum()

print('cat distance ', cat_distance)
print('penguin distance ', penguin_distance)

Note, the “context”-calculations and “embedding”-calculations lead to different predictions:

• context -> “cat” is less surprising in “owl”, “falcon” context

• embedding -> “penguin” is less surprising in “owl”, “falcon” context

Training Data

Now, we construct a set of episodes by uniformly sampling from the set of features with replacement, so that each episode involved one shared semantic feature that defined the associated context. Given this feature, we generated a support set by uniformly sampling two items sharing the feature, and a query set by uniformly sampling one additional item sharing the feature (positive) and one that is not sharing the feature (negative). Note, that as above-mentioned, any given set of objects can co-occur in multiple contexts (in other words can share multiple features), however, for features tha are broadly true of many objects, it is less likely for each specific pair of objects to be sampled. For example, if the feature is “eats mice”, the likelihood of sampling exactly {“owl”, “falcon”} is higher than if the feature is “is a bird” (since there are many more birds than mice eaters).

def get_random_episode():
    # randomly pick a context (feature)
    feature = random.choice(feature_df.columns)

    # one hot encoded feature vector is our context:
    context_label = [0] * len(feature_df.columns)
    context_label[feature_df.columns.get_loc(feature)] = 1

    # get objects that have this feature by name
    objects_included = feature_df[feature_df[feature] == 1].index.tolist()

    # get objects that don't have this feature
    objects_excluded = feature_df[feature_df[feature] == 0].index.tolist()

    # randomly pick two supports (can be the same twice)
    support = random.choices(objects_included, k=2)

    # the support vector is the embedding of the two supports
    support_vector_1 = embeddings_df.loc[support[0]]
    support_vector_2 = embeddings_df.loc[support[1]]

    # decide weather to pick an object that is in the context or not
    choice = random.choice([0, 1])

    if choice == 0:
        # pick an object that is not in the context
        query = random.choice(objects_excluded)
    else:
        # pick an object that is not in the context
        query = random.choice(objects_included)

    # the query vector is the embedding of the query
    query_vector = embeddings_df.loc[query]

    return {
        'context_label': context_label,
        'support_1': support_vector_1,
        'support_2': support_vector_2,
        'query': query_vector,
        'response': [1, 0] if choice > .5 else [0, 1]
    }

PsyNeuLink Model

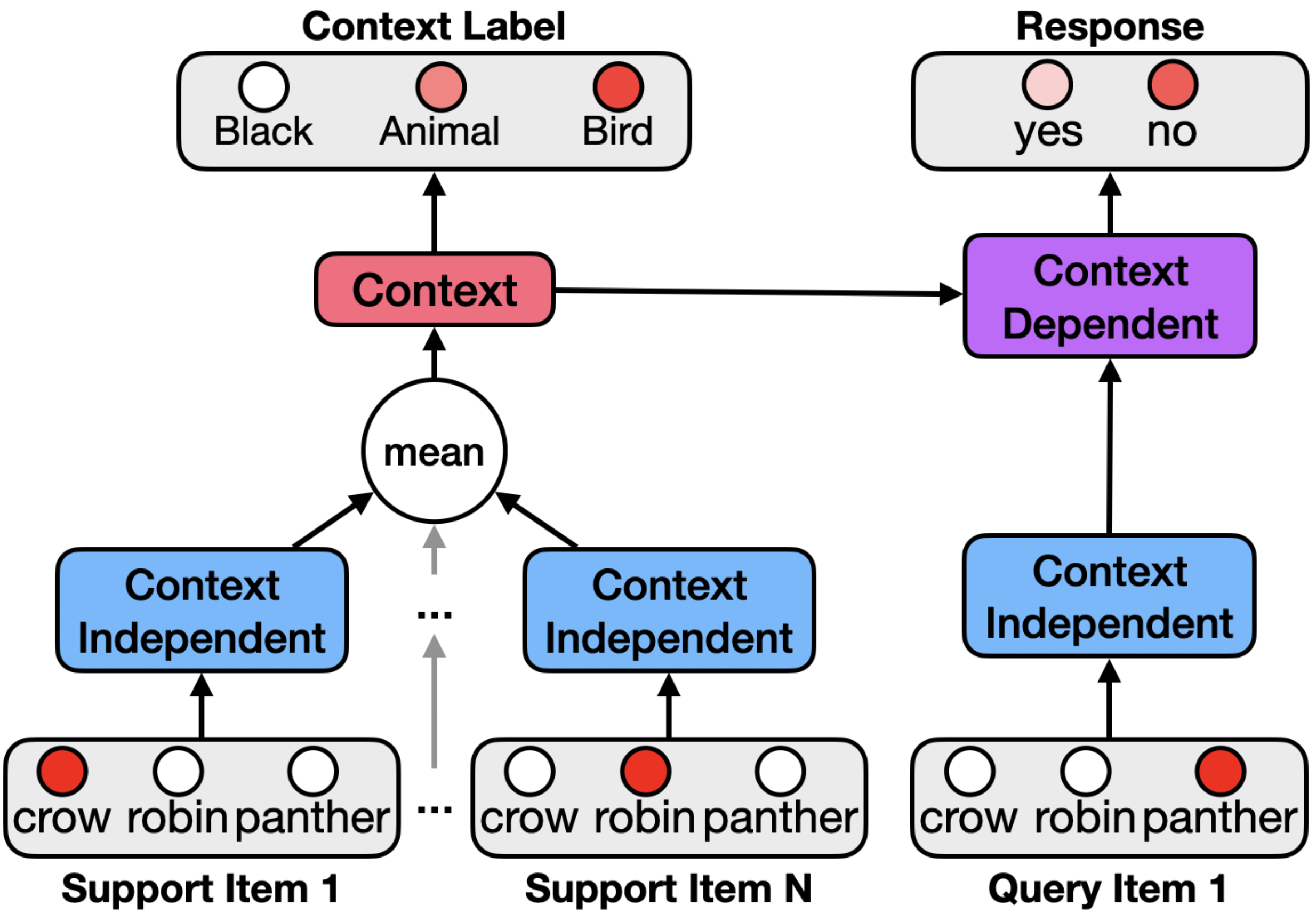

We design the model to infer the context from the objects in the support set and use this to make predictions about objects in the query set. The model’s architecture contains a context independent layer that encodes cross-context information, a context layer that encodes information about which features are relevant in the given context, and a context-dependent layer which selectively encodes context-relevant information. The ISC-CI model processes the items in the support set and uses this both to generate an internal representation of context and provide a predicted context-specific shared semantic feature label as output.

The ISC-CI model makes inferences about the current context using objects in the support set by sequentially observing each object in the support set, encoding each in the context independent layer, and integrating these representations by taking their average. This can be viewed as a very simple form of recurrence that accumulates (by linearly integrating and normalizing) activity across the items in the support set in the context independent layer.

The ISC-CI model makes predictions about which items in the query set occur in the current context. It does so by forming a context dependent representation that takes into account the context inferred from the support set together with the context-independent representation of the query set item. The model then uses this context dependent representation to activate the binary yes/no output unit indicating the likelihood that the query set item occurs in the current context.

🎯 Exercise 3a

Convince yourself that as context independent layer, we can use the embeddings of the support and query labels. In our PsyNeuLink implementation, we will “skip” the one-hot encoded labels and use the embeddings loaded earlier as input directly.

✅ Solution

The context independent layer captures context independent statistical properties of the objects (words). Word embeddings are a good representation of these properties and in many cases specifically trained to capture these properties (compare, for example, word2vec).

🎯 Exercise 3b

Explain -in your own words - why calculating the mean of the support embeddings a form of integration. Could you think about a different way of integrating the support embeddings?

💡 Hint

The mean of the support embeddings combines the information of multiple support vectors into one representation. However, does the order of the support vectors matter? Could you think about a way of integrating the support embeddings in a way that most recent support vectors have more weight than older ones?

✅ Solution

The mean of the support embeddings is a form of integration because it combines the information from multiple support embeddings into a single representation. This allows the model to capture the shared properties of the objects. Other ways of integrating the support embeddings could include using a weighted sum or recurrent neural networks (RNNs or other forms of temporal integration like LSTM or GRU). These methods would allow to integrate the support vectors “over time” and take into account the order of the support embeddings.

🎯 Exercise 3c

Before implementing the model, think about the dimensions of the different layers:

context independent, mean, context, context label, context dependent, and response

✅ Solution

The dimensions of the different layers are as follows:

• context independent: embedding dimension

• mean: embedding dimension

• context: arbitrary dimension (128 in the paper)

• context label: number of features in the feature set

• context dependent: arbitrary but the same as the context dimension

• response: 2 (yes/no)

N_EMBEDDING = embeddings_df.shape[1]
HIDDEN_CONTEXT = 128
N_CONTEXT = feature_df.shape[1]
LEARNING_RATE = 0.01


def create_model(
):
    ## Mechanisms
    # Here, we use 2 support vectors (but we could use more)
    support_1 = pnl.TransferMechanism(
        name='support_1',
        input_shapes=N_EMBEDDING
    )

    support_2 = pnl.TransferMechanism(
        name='support_2',
        input_shapes=N_EMBEDDING
    )

    # The mean of the support vectors is calculated by adding them
    # and multiplying by .5
    mean = pnl.TransferMechanism(
        name='mean',
        input_shapes=N_EMBEDDING,
        function=pnl.Linear(slope=.5),

    )
    context = pnl.TransferMechanism(
        name='context',
        input_shapes=HIDDEN_CONTEXT,
        function=pnl.ReLU()
    )

    context_label = pnl.TransferMechanism(
        name='context_label',
        input_shapes=N_CONTEXT,
        function=pnl.SoftMax()
    )

    query = pnl.TransferMechanism(
        name='query',
        input_shapes=N_EMBEDDING
    )

    context_dependent = pnl.TransferMechanism(
        name='context_dependent',
        input_shapes=HIDDEN_CONTEXT,
        function=pnl.ReLU()
    )

    response = pnl.TransferMechanism(
        name='response',
        input_shapes=2,
        function=pnl.SoftMax(),
    )

    ## Projections

    projection_mean_to_context = pnl.MappingProjection(
        name='projection_mean_to_context',
        matrix=pnl.RandomMatrix(0, .01),
        learnable=True
    )

    projection_query_to_context_dependent = pnl.MappingProjection(
        name='projection_query_to_context_dependent',
        matrix=pnl.RandomMatrix(0, .01),
        learnable=True
    )

    projection_context_to_context_label = pnl.MappingProjection(
        name='projection_context_dependent_to_context_out',
        matrix=pnl.RandomMatrix(0, .01),
        learnable=True
    )

    projection_context_dependent_to_response = pnl.MappingProjection(
        name='projection_query_dependent_to_response',
        matrix=pnl.RandomMatrix(0, .01),
        learnable=True
    )

    ## Pathways

    model = pnl.AutodiffComposition(
        name='embedding',
        pathways=[
            [support_1, pnl.IDENTITY_MATRIX, mean],
            [support_2, pnl.IDENTITY_MATRIX, mean],
            [query, projection_query_to_context_dependent, context_dependent],
            [mean, projection_mean_to_context, context],
            [context, pnl.IDENTITY_MATRIX, context_dependent],
            [context, projection_context_to_context_label, context_label],
            [context_dependent, projection_context_dependent_to_response, response]
        ],
        learning_rate=LEARNING_RATE
    )
    return (model, query, support_1, support_2,
            context_label, response)

isc_ci_model, query, support_1, support_2, context_label, response = create_model()
isc_ci_model.show_graph(output_fmt='jupyter')

---------------------------------------------------------------------------
FileNotFoundError                         Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/backend/execute.py:76, in run_check(cmd, input_lines, encoding, quiet, **kwargs)
     75         kwargs['stdout'] = kwargs['stderr'] = subprocess.PIPE
---> 76     proc = _run_input_lines(cmd, input_lines, kwargs=kwargs)
     77 else:

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/backend/execute.py:96, in _run_input_lines(cmd, input_lines, kwargs)
     95 def _run_input_lines(cmd, input_lines, *, kwargs):
---> 96     popen = subprocess.Popen(cmd, stdin=subprocess.PIPE, **kwargs)
     98     stdin_write = popen.stdin.write

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/subprocess.py:1026, in Popen.__init__(self, args, bufsize, executable, stdin, stdout, stderr, preexec_fn, close_fds, shell, cwd, env, universal_newlines, startupinfo, creationflags, restore_signals, start_new_session, pass_fds, user, group, extra_groups, encoding, errors, text, umask, pipesize, process_group)
   1023             self.stderr = io.TextIOWrapper(self.stderr,
   1024                     encoding=encoding, errors=errors)
-> 1026     self._execute_child(args, executable, preexec_fn, close_fds,
   1027                         pass_fds, cwd, env,
   1028                         startupinfo, creationflags, shell,
   1029                         p2cread, p2cwrite,
   1030                         c2pread, c2pwrite,
   1031                         errread, errwrite,
   1032                         restore_signals,
   1033                         gid, gids, uid, umask,
   1034                         start_new_session, process_group)
   1035 except:
   1036     # Cleanup if the child failed starting.

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/subprocess.py:1955, in Popen._execute_child(self, args, executable, preexec_fn, close_fds, pass_fds, cwd, env, startupinfo, creationflags, shell, p2cread, p2cwrite, c2pread, c2pwrite, errread, errwrite, restore_signals, gid, gids, uid, umask, start_new_session, process_group)
   1954 if err_filename is not None:
-> 1955     raise child_exception_type(errno_num, err_msg, err_filename)
   1956 else:

FileNotFoundError: [Errno 2] No such file or directory: PosixPath('dot')

The above exception was the direct cause of the following exception:

ExecutableNotFound                        Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/IPython/core/formatters.py:1036, in MimeBundleFormatter.__call__(self, obj, include, exclude)
   1033     method = get_real_method(obj, self.print_method)
   1035     if method is not None:
-> 1036         return method(include=include, exclude=exclude)
   1037     return None
   1038 else:

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/jupyter_integration.py:98, in JupyterIntegration._repr_mimebundle_(self, include, exclude, **_)
     96 include = set(include) if include is not None else {self._jupyter_mimetype}
     97 include -= set(exclude or [])
---> 98 return {mimetype: getattr(self, method_name)()
     99         for mimetype, method_name in MIME_TYPES.items()
    100         if mimetype in include}

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/jupyter_integration.py:98, in <dictcomp>(.0)
     96 include = set(include) if include is not None else {self._jupyter_mimetype}
     97 include -= set(exclude or [])
---> 98 return {mimetype: getattr(self, method_name)()
     99         for mimetype, method_name in MIME_TYPES.items()
    100         if mimetype in include}

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/jupyter_integration.py:112, in JupyterIntegration._repr_image_svg_xml(self)
    110 def _repr_image_svg_xml(self) -> str:
    111     """Return the rendered graph as SVG string."""
--> 112     return self.pipe(format='svg', encoding=SVG_ENCODING)

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/piping.py:104, in Pipe.pipe(self, format, renderer, formatter, neato_no_op, quiet, engine, encoding)
     55 def pipe(self,
     56          format: typing.Optional[str] = None,
     57          renderer: typing.Optional[str] = None,
   (...)     61          engine: typing.Optional[str] = None,
     62          encoding: typing.Optional[str] = None) -> typing.Union[bytes, str]:
     63     """Return the source piped through the Graphviz layout command.
     64
     65     Args:
   (...)    102         '<?xml version='
    103     """
--> 104     return self._pipe_legacy(format,
    105                              renderer=renderer,
    106                              formatter=formatter,
    107                              neato_no_op=neato_no_op,
    108                              quiet=quiet,
    109                              engine=engine,
    110                              encoding=encoding)

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/_tools.py:185, in deprecate_positional_args.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
    177     wanted = ', '.join(f'{name}={value!r}'
    178                        for name, value in deprecated.items())
    179     warnings.warn(f'The signature of {func_name} will be reduced'
    180                   f' to {supported_number} positional arg{s_}{qualification}'
    181                   f' {list(supported)}: pass {wanted} as keyword arg{s_}',
    182                   stacklevel=stacklevel,
    183                   category=category)
--> 185 return func(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/piping.py:121, in Pipe._pipe_legacy(self, format, renderer, formatter, neato_no_op, quiet, engine, encoding)
    112 @_tools.deprecate_positional_args(supported_number=1, ignore_arg='self')
    113 def _pipe_legacy(self,
    114                  format: typing.Optional[str] = None,
   (...)    119                  engine: typing.Optional[str] = None,
    120                  encoding: typing.Optional[str] = None) -> typing.Union[bytes, str]:
--> 121     return self._pipe_future(format,
    122                              renderer=renderer,
    123                              formatter=formatter,
    124                              neato_no_op=neato_no_op,
    125                              quiet=quiet,
    126                              engine=engine,
    127                              encoding=encoding)

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/piping.py:149, in Pipe._pipe_future(self, format, renderer, formatter, neato_no_op, quiet, engine, encoding)
    146 if encoding is not None:
    147     if codecs.lookup(encoding) is codecs.lookup(self.encoding):
    148         # common case: both stdin and stdout need the same encoding
--> 149         return self._pipe_lines_string(*args, encoding=encoding, **kwargs)
    150     try:
    151         raw = self._pipe_lines(*args, input_encoding=self.encoding, **kwargs)

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/backend/piping.py:212, in pipe_lines_string(engine, format, input_lines, encoding, renderer, formatter, neato_no_op, quiet)
    206 cmd = dot_command.command(engine, format,
    207                           renderer=renderer,
    208                           formatter=formatter,
    209                           neato_no_op=neato_no_op)
    210 kwargs = {'input_lines': input_lines, 'encoding': encoding}
--> 212 proc = execute.run_check(cmd, capture_output=True, quiet=quiet, **kwargs)
    213 return proc.stdout

File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/graphviz/backend/execute.py:81, in run_check(cmd, input_lines, encoding, quiet, **kwargs)
     79 except OSError as e:
     80     if e.errno == errno.ENOENT:
---> 81         raise ExecutableNotFound(cmd) from e
     82     raise
     84 if not quiet and proc.stderr:

ExecutableNotFound: failed to execute PosixPath('dot'), make sure the Graphviz executables are on your systems' PATH

<graphviz.graphs.Digraph at 0x7f720267b1d0>

🎯 Exercise 4

The activation function of the context label and the response is SoftMax. Do you think these are reasonable activation functions? If so, why?

✅ Solution

The SoftMax activation function is reasonable for the context label because it outputs a probability distribution over the features. In the section above (generating the training data), we discussed that a context is exactly defined by one feature (a feature that is shared by all support items).

The SoftMax activation function is also reasonable for the response for the same reason. The response is a binary classification task (yes/no) and the SoftMax activation function captures this.

Training Loop

The model is now trained on 20,000 episodes.

Note, that this is not enough for the model to converge and just illustrates how a training loop would look like. We don’t expect reasonable predictions after training.

tot_reps = 1
examples_per_rep = 20_000
n_epochs = 1

for reps in range(tot_reps):

    inputs_dict = {
        query: [],
        support_1: [],
        support_2: [],
    }

    targets_dict = {
        context_label: [],
        response: [],
    }

    # Get Trainign
    i = 0
    while i < examples_per_rep:
        example = get_random_episode()
        # Append the input to the dictionary
        inputs_dict[query].append(example['query'])
        inputs_dict[support_1].append(example['support_1'])
        inputs_dict[support_2].append(example['support_2'])

        # Append the targets to the dictionary
        targets_dict[context_label].append(example['context_label'])
        targets_dict[response].append(example['response'])
        i += 1

    # Train the network for `n_epochs`
    result = isc_ci_model.learn(
        inputs={
            'inputs': inputs_dict,
            'targets': targets_dict,
            'epochs': n_epochs
        },
        execution_mode=pnl.ExecutionMode.PyTorch
    )
    # Print a dot for each repetition to track progress
    print('.', end='')
    # Print a new line every 10 repetitions
    if (reps + 1) % 10 == 0:
        print()

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/core/compositions/composition.py:10404: UserWarning: There are one or more TARGET_MECHANISMS specified in both the 'inputs' and 'targets' args of the learn() method for embedding (TARGET for context_label ,TARGET for response); This isn't technically a problem, but it is redundant so thought you should know ;^).
  warnings.warn(f"There are one or more TARGET_MECHANISMS specified in both the 'inputs' and 'targets' "

---------------------------------------------------------------------------
KeyboardInterrupt                         Traceback (most recent call last)
/tmp/ipykernel_2995/178394642.py in ?()
     29         targets_dict[response].append(example['response'])
     30         i += 1
     31
     32     # Train the network for `n_epochs`
---> 33     result = isc_ci_model.learn(
     34         inputs={
     35             'inputs': inputs_dict,
     36             'targets': targets_dict,

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/core/globals/context.py in ?(context, *args, **kwargs)
    744                         pass
    745
    746             try:
    747                 return func(*args, context=context, **kwargs)
--> 748             except TypeError as e:
    749                 # context parameter may be passed as a positional arg
    750                 if (
    751                     f"{func.__name__}() got multiple values for argument"

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/library/compositions/autodiffcomposition.py in ?(self, synch_projection_matrices_with_torch, synch_node_variables_with_torch, synch_node_values_with_torch, synch_results_with_torch, retain_torch_trained_outputs, retain_torch_targets, retain_torch_losses, context, base_context, skip_initialization, *args, **kwargs)
   1757             raise AutodiffCompositionError(f"'{self.name}.learn()' has been called with ExecutionMode.Pytorch, "
   1758                                            f"but Pytorch module ('torch') is not installed. "
   1759                                            f"Please install it with `pip install torch` or `pip3 install torch`")
   1760
-> 1761         return super().learn(*args,
   1762                              synch_with_pnl_options=synch_with_pnl_options,
   1763                              retain_in_pnl_options=retain_in_pnl_options,
   1764                              execution_mode=execution_mode,

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/core/globals/context.py in ?(context, *args, **kwargs)
    744                         pass
    745
    746             try:
    747                 return func(*args, context=context, **kwargs)
--> 748             except TypeError as e:
    749                 # context parameter may be passed as a positional arg
    750                 if (
    751                     f"{func.__name__}() got multiple values for argument"

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/core/compositions/composition.py in ?(self, inputs, targets, num_trials, epochs, learning_rate, minibatch_size, optimizations_per_minibatch, patience, min_delta, execution_mode, randomize_minibatches, call_before_minibatch, call_after_minibatch, context, base_context, skip_initialization, *args, **kwargs)
  12097
  12098         if optimizations_per_minibatch is None:
  12099             optimizations_per_minibatch = self.parameters.optimizations_per_minibatch._get(context)
  12100
> 12101         result = runner.run_learning(
  12102             inputs=inputs,
  12103             targets=targets,
  12104             num_trials=num_trials,

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/library/compositions/compositionrunner.py in ?(self, inputs, targets, num_trials, epochs, learning_rate, minibatch_size, optimizations_per_minibatch, patience, min_delta, randomize_minibatches, synch_with_pnl_options, retain_in_pnl_options, call_before_minibatch, call_after_minibatch, context, execution_mode, skip_initialization, **kwargs)
    403                 stim_epoch = stim_input['epochs']
    404
    405             # By-pass parse learning spec if we are dealing with sequences for now
    406             if not (isinstance(stim_input, list) and all(isinstance(i, dict) for i in stim_input)):
--> 407                 stim_input, num_input_trials = self._composition._parse_learning_spec(inputs=stim_input,
    408                                                                                       targets=stim_target,
    409                                                                                       execution_mode=execution_mode,
    410                                                                                       context=context)

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/library/compositions/autodiffcomposition.py in ?(self, inputs, targets, execution_mode, context)
   1583     def _parse_learning_spec(self, inputs, targets, execution_mode, context):
-> 1584         stim_input, num_input_trials = super()._parse_learning_spec(inputs, targets, execution_mode, context)
   1585
   1586         if not callable(inputs):
   1587             input_ports_for_INPUT_Nodes = self._get_input_receivers()

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/core/compositions/composition.py in ?(self, inputs, targets, execution_mode, context)
  10407                 self._warned_about_targets_mechs_in_inputs_and_targets = True
  10408
  10409         # 3) Resize inputs to be of the form [[[]]],
  10410         # where each level corresponds to: <TRIALS <PORTS <INPUTS> > >
> 10411         inputs, num_inputs_sets = self._parse_input_dict(inputs, context)
  10412
  10413         return inputs, num_inputs_sets

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/core/compositions/composition.py in ?(self, inputs, context)
  10569         # compute number of input sets and return that as well
  10570         _inputs = self._parse_names_in_inputs(inputs)
  10571         _inputs = self._parse_labels(_inputs)
  10572         self._validate_input_dict_keys(_inputs)
> 10573         _inputs = self._instantiate_input_dict(_inputs)
  10574         _inputs = self._flatten_nested_dicts(_inputs)
  10575         _inputs = self._validate_input_shapes_and_expand_for_all_trials(_inputs)
  10576         num_inputs_sets = len(next(iter(_inputs.values()),[]))

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/psyneulink/core/compositions/composition.py in ?(self, inputs)
  10800                 if is_mech:
  10801                     node_name = node_spec.name
  10802                 else:
  10803                     node_name = node_spec.full_name
> 10804                 error_base_msg = f"Input for '{node_name}' of '{self.name}' ({_inputs}) "
  10805
  10806                 if isinstance(_inputs, dict):
  10807                     # entry is dict for a nested Composition, which will be handled recursively

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/core/series.py in ?(self)
   1789         Return a string representation for a particular Series.
   1790         """
   1791         # pylint: disable=invalid-repr-returned
   1792         repr_params = fmt.get_series_repr_params()
-> 1793         return self.to_string(**repr_params)

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/core/series.py in ?(self, buf, na_rep, float_format, header, index, length, dtype, name, max_rows, min_rows)
   1876         >>> ser = pd.Series([1, 2, 3]).to_string()
   1877         >>> ser
   1878         '0    1\\n1    2\\n2    3'
   1879         """
-> 1880         formatter = fmt.SeriesFormatter(
   1881             self,
   1882             name=name,
   1883             length=length,

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/io/formats/format.py in ?(self, series, length, header, index, na_rep, name, float_format, dtype, max_rows, min_rows)
    221         self.float_format = float_format
    222         self.dtype = dtype
    223         self.adj = printing.get_adjustment()
    224
--> 225         self._chk_truncate()

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/io/formats/format.py in ?(self)
    243                 row_num = max_rows
    244                 series = series.iloc[:max_rows]
    245             else:
    246                 row_num = max_rows // 2
--> 247                 series = concat((series.iloc[:row_num], series.iloc[-row_num:]))
    248             self.tr_row_num = row_num
    249         else:
    250             self.tr_row_num = None

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/core/indexing.py in ?(self, key)
   1187             axis = self.axis or 0
   1188
   1189             maybe_callable = com.apply_if_callable(key, self.obj)
   1190             maybe_callable = self._check_deprecated_callable_usage(key, maybe_callable)
-> 1191             return self._getitem_axis(maybe_callable, axis=axis)

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/core/indexing.py in ?(self, key, axis)
   1725                 "Consider using .loc for automatic alignment."
   1726             )
   1727
   1728         if isinstance(key, slice):
-> 1729             return self._get_slice_axis(key, axis=axis)
   1730
   1731         if is_iterator(key):
   1732             key = list(key)

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/core/indexing.py in ?(self, slice_obj, axis)
   1761             return obj.copy(deep=False)
   1762
   1763         labels = obj._get_axis(axis)
   1764         labels._validate_positional_slice(slice_obj)
-> 1765         return self.obj._slice(slice_obj, axis=axis)

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/core/series.py in ?(self, slobj, axis)
   1096     def _slice(self, slobj: slice, axis: AxisInt = 0) -> Series:
   1097         # axis kwarg is retained for compat with NDFrame method
   1098         #  _slice is *always* positional
   1099         mgr = self._mgr.get_slice(slobj, axis=axis)
-> 1100         out = self._constructor_from_mgr(mgr, axes=mgr.axes)
   1101         out._name = self._name
   1102         return out.__finalize__(self)

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/core/series.py in ?(self, mgr, axes)
    664     def _constructor_from_mgr(self, mgr, axes):
    665         ser = Series._from_mgr(mgr, axes=axes)
--> 666         ser._name = None  # caller is responsible for setting real name
    667
    668         if type(self) is Series:
    669             # This would also work `if self._constructor is Series`, but

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pandas/core/generic.py in ?(self, name, value)
   6335
   6336         # if this fails, go on to more involved attribute setting
   6337         # (note that this matches __getattr__, above).
   6338         if name in self._internal_names_set:
-> 6339             object.__setattr__(self, name, value)
   6340         elif name in self._metadata:
   6341             object.__setattr__(self, name, value)
   6342         else:

KeyboardInterrupt:

Testing

embedding_falcon = embeddings_df.loc['falcon']
embedding_owl = embeddings_df.loc['owl']

embedding_cat = embeddings_df.loc['cat']
embedding_penguin = embeddings_df.loc['penguin']

res_cat = isc_ci_model.run(
    {
        query: embedding_cat,
        support_1: embedding_falcon,
        support_2: embedding_owl,
    })
response.value

array([[0.4971299 , 0.50272648]])

res_penguin = isc_ci_model.run(
    {
        query: embedding_penguin,
        support_1: embedding_falcon,
        support_2: embedding_owl,
    })
response.value

array([[0.47386775, 0.52613219]])

🎯 Exercise 5

Since the training was not sufficient, the model will not be able to predict the correct response. However, can you explain what the expected outcome for the above support and query items would be?

✅ Solution

The expected outcome for the above support and query items would be:

Higher split between yes and no for the query cat than for the query penguin.

🎯 Exercise 6

Even with a larger training set, the model is unlikely to “see” each combination of support and query items for each possible context. How can it still learn contexts for unseen combinations?

💡 Hint

Why are we using context independent layers in the first place? What would happen if we just use one-hot encodings and skip these independent layer?

✅ Solution

The embeddings make it so that the model generalizes to unseen combinations since they might be “similar” to seen combinations. For example, birds share features in embedding space. So even if the model hasn’t seen specific bird combinations it still learns the context that is elicited by these combinations.

If we just use one-hot encodings and skip the context independent layer, the model would not be able to generalize to unseen combinations since they don’t share any activations (everything is orthogonal). This would mean that with enough training, the model would maybe still learn to make correct predictions but never on unseen combinations.
