Introduction#

To first approximation, activity of a neuron in the brain is determined by the integration of excitatory and inhibitory impulses received by its dendrites and passed to the cell body. If excitatory signals outweigh inhibitory signals sufficiently to pass a threshold, the neuron will fire, sending out an action potential via its axon.

Artificial neurons were conceived to behave in a similar manner to real ones. Early artificial neurons were dubbed perceptrons; they received multiple binary inputs, multiplied each one by an appropriate “weight”, added them together (this should sound familiar), and produced a single binary output that depends on whether the sum passes a certain threshold. In short, they applied a step function to the transformed input. This is referred to as an LBF (linear basis function) activation function.

LBF

If we define the threshold \( \equiv-b \), then we can rewrite our conditional output

\[\begin{split} \begin{equation} output= \begin{cases} 0 & if \: w \cdot x + b \leq 0 \\ 1 & if \: w \cdot x + b > 0 \end{cases} \end{equation} \end{split}\]

The term \(b\) is called a bias, and perceptrons are a special kind of linear classifier called a binary classifier. It is known as a binary classifier because it is assigning one of two labels (the binary output) to the inputs it receives, according to their dot product with the weights (a linear operation). The line defined by \( w \cdot x+b=0 \) is the line that separates the classes from each other. Our “red square, blue circle” class example from earlier in the lab is an example of binarily classifiable data.

multilayer ffn

In a multilayer feedforward network, artificial neurons are clustered into layers, where the output of one layer forms the input of the next. The first layer is known as the input layer, the last is the output layer, and the operational layers, where the dot products are computed, are called “hidden layers”.

Binary classification is simple but powerful. We will show this by using them to construct a set of logic gates.

Installation and Setup

%%capture
%pip install psyneulink

import numpy as np
import matplotlib.pyplot as plt
import psyneulink as pnl

AND Gate#

An AND gate is a logic gate that answers the question:

“Are A and B both simultaneously true?”.

In this context, we represent “True” with 1 and “False” with 0.

First, let’s define a training set that includes all possible input combinations of the boolean values True (1) and False (0) and their corresponding labels. Remember, AND(X, Y) is true if and only if both X and Y are true.

Note: In a machine learning context, we often refer to a training set as a collection of input-output pairs used to teach a model. A label as the correct output for a given input.

# Create the training set
training_set = np.array([[0, 0], [0, 1], [1, 0], [1, 1]])
training_set = training_set.T
n_combos = np.shape(training_set)[1]
ub = np.max(abs(training_set))
lb = - ub

# Create the labels
and_labels = np.array([0, 0, 0, 1])
and_labels.shape = (1, n_combos)

#
# Reshape labeled_set to match a 2D grid
labeled_set = np.zeros((2, 2))  # 2x2 grid for (A, B) inputs
for i in range(n_combos):
    A, B = training_set[:, i]  # Extract each (A, B) pair
    labeled_set[B, A] = and_labels[0, i]  # Assign label at corresponding (B, A) position

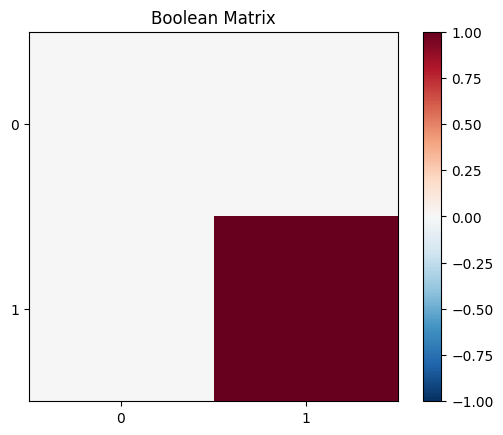

# Plot the labeled set
plt.figure()
plt.title('Boolean Matrix')
plt.xticks(np.arange(0, n_combos))
plt.yticks(np.arange(0, 2))
plt.imshow(labeled_set, cmap='RdBu_r', vmin=lb, vmax=ub)
plt.colorbar()
plt.show()
../../../../../_images/b26dec61d070f07f05933d684b202e3d6f39a7b6c028e77a47da4eba85100c9b.png

Using Weights in a Perceptron#

Given an input vector X (e.g., the values of A and B in an AND gate), the perceptron computes a weighted sum of these inputs using a weight matrix W and then applies a bias term to adjust the threshold for activation:

\[ Z = Wx + b \]

Z is the weighted sum before applying an activation function. This weighted sum determines the perceptron’s output. If Z is greater than a certain threshold (often 0), the perceptron outputs 1 (True); otherwise, it outputs 0 (False).

Here, we implement a random weight matrix with a fixed bias (b=-1):

# Set a random seed for reproducibility
np.random.seed(16)

# Remember, the shape of the matrix is determined by its input shape (2 in this case), and its output shape (1 in this case)
w = np.random.rand(1, 2)

# Set the bias
b = -1

# define a function that calculates the output of the perceptron
def predict(x):
    # calculate the weighted sum
    z = w @ x + b
    # check weather z is above the threshold
    return int(z[0] > 0)

# Let's print the outputs of this random perceptron on the training set:
predicted_set = np.zeros((2, 2))  # 2x2 grid for (A, B) inputs
for i in range(n_combos):
    A, B = training_set[:, i]  # Extract each (A, B) pair
    predicted_set[B, A] = predict(training_set[:, i])
      # Assign label at corresponding (B, A) position

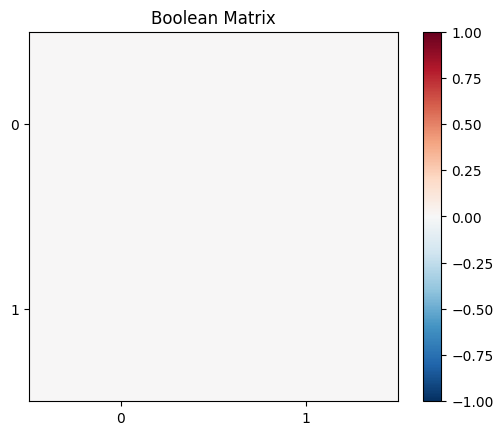

# Plot the predictions
plt.figure()
plt.title('Boolean Matrix')
plt.xticks(np.arange(0, n_combos))
plt.yticks(np.arange(0, 2))
plt.imshow(predicted_set, cmap='RdBu_r', vmin=lb, vmax=ub)
plt.colorbar()
plt.show()
../../../../../_images/131795aee538d40caf69ec006b5a5ef979297f3f76ab4bc545420141d1b52c7c.png

🎯 Exercise 1

The above implementation does not give the correct answer (it is not a and gate). Can you think about an algorithm that automatically “finds” the right weights?

💡 Hint

You can be inspired by the bogo sort algorithm. It randomly picks permutations, and tests if they are sorted.

✅ Solution

A simple (brute force) solution is to randomly initialize the weights until we find fitting ones:

predicted_set = np.zeros((2, 2))
tries = 0


def predict(x, w):
    z = w @ x + b
    return int(z[0] >= 0)


while not np.allclose(predicted_set, labeled_set):  # as long as our predictions doesn't match the labels
    tries += 1
    # get new random weights
    w = np.random.rand(1, 2)
    b = -1

    for i in range(n_combos):
        A, B = training_set[:, i]
        predicted_set[B, A] = predict(training_set[:, i], w)


print(f"Found fitting weights after {tries} tries:")

plt.figure()
plt.title('Boolean Matrix')
plt.xticks(np.arange(0, n_combos))
plt.yticks(np.arange(0, 2))
plt.imshow(predicted_set, cmap='RdBu_r', vmin=lb, vmax=ub)
plt.colorbar()
plt.show()

Learning the Weights#

For a simple gate like this, we could choose our weights and bias manually to correctly classify each example. However, we would rather the perceptron learn the weights itself. We can train it using supervised learning by showing it examples of the data with the appropriate labels (a truth table). If the weights were initialized randomly, these will generate a random answer at first, so the perceptron must change its weights when its output does not match the labels we gave it.

For perceptrons, we use error-based learning, where the weights are adjusted in the correct direction, based on the size and direction of the error. This is given by the Perceptron Learning Rule, and is written mathematically as:

\[ \begin{equation} w_{ij} \rightarrow w_{ij}+ \eta (desired \ label - predicted \ label) in_{i} \end{equation} \]

Where \(w_{ij}\) is the weight connecting the \(i-th\) input to the \(j-th\) output, \(in_{i}\) is the \(i{th}\) input, and \( \eta \) is the learning rate. The learning rate is a positive parameter that determines the size of the weight update.

# Set a random seed for reproducibility
np.random.seed(42)

# Initializing the weights with random values.
w = np.random.rand(1, 2) * .1

# Set the bias and learning rate
b = -1
eta = np.array([.3, .3])

# Variables to store the accuracy and loop count
accuracy = 0
loop_count = 0
acc_vec = []

while accuracy < 100:
    summed_accuracy = 0
    # Calculate the predicted value for each input and learn the weights
    for i in range(np.shape(training_set)[1]):
        # Set the predicted label to 0 if the predicted value is less than or equal to 0
        # and 1 otherwise
        if w @ training_set[:, i] + b <= 0:
            predicted_label = 0
        else:
            predicted_label = 1
        # Check if the predicted label is correct
        if predicted_label == and_labels[:, i]:
            # Summing the accuracy
            summed_accuracy = summed_accuracy + 100
        else:
            diff = (and_labels[:, i] - predicted_label)
            # Update the weights if the predicted label is incorrect
            w = w + eta * diff * training_set[:, i].T
    accuracy = int(summed_accuracy / n_combos)
    acc_vec = np.append(acc_vec, accuracy)
    loop_count = loop_count + 1
lc = loop_count

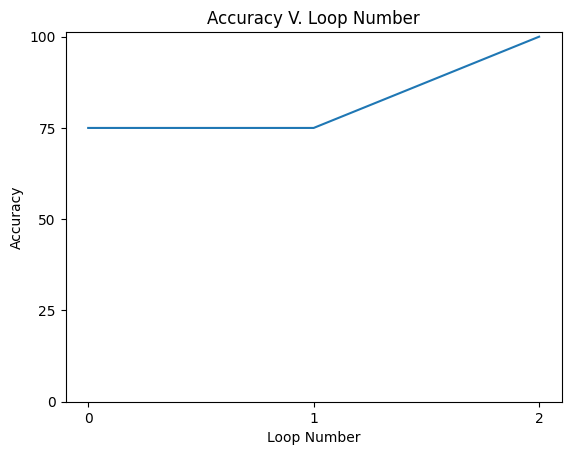

# Plot the accuracy over time
plt.figure()
plt.plot(acc_vec)
plt.title('Accuracy V. Loop Number')
plt.xlabel('Loop Number')
plt.ylabel('Accuracy')
plt.xticks(np.arange(0, int(lc)))
plt.yticks([0, 25, 50, 75, 100])
plt.show()
../../../../../_images/9c38eb745eb571525853b185a8e46e214938c197ea035a6a91d185d772a2fa81.png

🎯 Exercise 1

Implement the OR gate using the perceptron learning rule. The OR gate is a logic gate that answers the question, “is A or B true?”. Remember, OR(X, Y) is true if either X or Y (or both) are true.

# Implement your code here
✅ Solution 1
# We can use the same input_set but use different labels
or_labels = np.array([0, 1, 1, 1])
or_labels.shape = (1, n_combos)

# Set a random seed for reproducibility
np.random.seed(42)

# Initializing the weights with random values.
w = np.random.rand(1, 2) * .1


# Set the bia and learning rate
b = -1
eta = np.array([.3, .3])

# Variables to store the accuracy and loop count
accuracy = 0
loop_count = 0
acc_vec = []

while accuracy < 100:
    summed_accuracy = 0
    # Calculate the predicted value for each input and learn the weights
    for i in range(np.shape(input_set)[1]):
        # Set the predicted label to 0 if the predicted value is less than or equal to 0
        # and 1 otherwise
        if w @ input_set[:, i] + b <= 0:
            predicted_label = 0
        else:
            predicted_label = 1
        # Check if the predicted label is correct
        if predicted_label == or_labels[:, i]:
            # Summing the accuracy
            summed_accuracy = summed_accuracy + 100
        else:
            diff = (or_labels[:, i] - predicted_label)
            # Update the weights if the predicted label is incorrect
            w = w + eta * diff * input_set[:, i].T
    accuracy = int(summed_accuracy / n_combos)
    acc_vec = np.append(acc_vec, accuracy)
    loop_count = loop_count + 1
lc = loop_count

# Plot the accuracy over time
plt.figure()
plt.plot(acc_vec)
plt.title('Accuracy V. Loop Number')
plt.xlabel('Loop Number')
plt.ylabel('Accuracy')
plt.xticks(np.arange(0, int(lc)))
plt.yticks([0, 25, 50, 75, 100])
plt.show()

This method works well for a single layer of perceptrons. Now, consider multiple layers of perceptrons, each operating linearly, but producing a step function output. When they produce an incorrect result, how do we know which layer is responsible for the mistake and what step size would be useful to correct it?

Because of their binary output, linearly updating weights of perceptrons in a multilayer network produces unpredictable and problematic results. A natural solution is to replace the step function with a function that more gradually interpolates between 0 and 1. A good choice here is the logistic function, which we have encountered in the previous section. It is possible to generalize the Perceptron Learning Rule to this case using calculus; the details are presented in the Appendix at the end of this notebook. We suggest that you skim the Appendix now, and then read it more carefully after you have finished this lab. Once you understand this derivation, you will be in good shape for when we discuss the Backpropagation algorithm in the next lab.

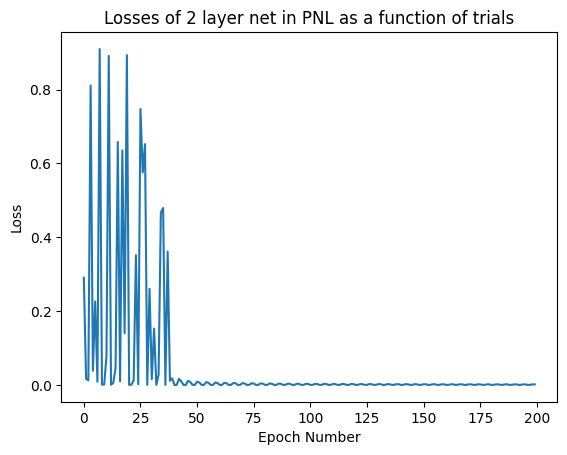

Appendix: Derivation of Learning Rule for two-layer network with sigmoidal activation#

Sigmoid neurons take inputs and produce outputs similar to perceptrons, however, the inputs and outputs are not binary. Additionally, rather than applying a simple dot product to the inputs such that

\[ \begin{equation} z(w,x) = w \cdot x + b \end{equation} \]

these new types of neurons apply the sigmoid function, of the form

\[ \begin{equation} \sigma(z(w,x))=\frac{1}{1+e^{-z(w,x)}} \end{equation} \]

This function is actually the same as a logistic function with a bias value of 0 and a gain value of 1. It has an upper bound at 1 and a lower bound at zero. This can be seen by examining the limits: \(\lim_{z(w,x)\to\infty} \sigma(z(w,x))\) and \(\lim_{z(w,x)\to -\infty} \sigma(z(w,x))\). Although its equation looks complex, a logistic function can quickly become intuitive when you try modifying the parameters, as shown in logistic function.

In a multilayer network, the output of multiple sigmoid functions in the first non-input layer forms the input to the next layer. However, because of its bounded structure, a sigmoid function only outputs 1 or 0 at the limits (when rounding error kicks in). Typically its output will be somewhere in between. Therefore, there will always be some error between the desired output of a logical function (1 or 0) and the output of a sigmoid. The error of a single output is given by

\[ \begin{equation} E=desired \ output - \sigma(z(w,x)) \end{equation} \]

A common measure of error is called the mean squared error, and is given by

\[ \begin{equation} E = \frac{1}{n} \ \sum_{i=1}^{n} (desired \ output_{i} - \sigma(z(w,x))_{i})^2 \end{equation} \]

Although we cannot drive this value to zero (when our desired output is binary), we can minimize it. Because it is a sum of squares, we can minimize it by minimizing each term. Because each term is a convex function of the weights, it is minimized when its derivative as a function of the weights is zero. We can train our neural net to do this using the delta rule, which is very similar to the perceptron learning rule.

\[ \begin{equation} w^{t+1} = \underbrace{w^t}_\text{current weight} + \underbrace{\Delta w^t}_\text{weight change} \end{equation} \]

where

\[ \begin{equation} \Delta w^t = - \alpha \underbrace{\frac{\partial E^t}{\partial w^t}}_\text{change in error terms as a function of the weights} \end{equation} \]

As you can see, when the derivative of the error is zero, the weights stop changing. The error is, at this point, minimized.

In order to calculate the derviative of the error, we simply employ the chain rule. We will aslo be using a modified form of the error. Instead of scaling each term by \(\frac{1}{n}\), we will scale by \(\frac{1}{2}\)

So, each error term is given by

\[ \begin{equation} E_{i} = \frac{1}{2} (desired \ output_{i} - \sigma(h(x))_{i})^2 \end{equation} \]

and its derivative is given by

\[ \begin{equation} \frac{\partial E_{i}}{\partial w} = \underbrace{\frac{\partial E_{i}}{\partial \sigma(h(w,x))}}_\text{derivative 1} \quad \underbrace{\frac{\partial \sigma(h(w,x))}{\partial h(w,x)}}_\text{derivative 2} \quad \underbrace{\frac{\partial h(w,x)}{\partial w}}_\text{derivative 3} \end{equation} \]

Now, because \(h(w,x)\) is a vector equation, its derivative is also a vector. This produces our vector of weight changes, each term of which is determined by derivative 3

\[ \begin{equation} \quad \underbrace{\frac{\partial h(w,x)}{\partial w_{i}}}_\text{derivative 3} \end{equation} \]

This comes out surprisingly tidily:

\[ \begin{equation} {\frac{\partial E^t}{\partial w_{i}^t}}=(desired \ output - \sigma) (\sigma (1 - \sigma))x_{i} \end{equation} \]

Now

\[ \begin{equation} \Delta w^t_{i} = - \alpha (desired \ output - \sigma) (\sigma (1 - \sigma))x_{i} \end{equation} \]

Biases are updated in much the same fashion, using

\[ \begin{equation} \Delta b^t_{i} = - \alpha (desired \ output - \sigma) (\sigma (1 - \sigma))1 \end{equation} \]

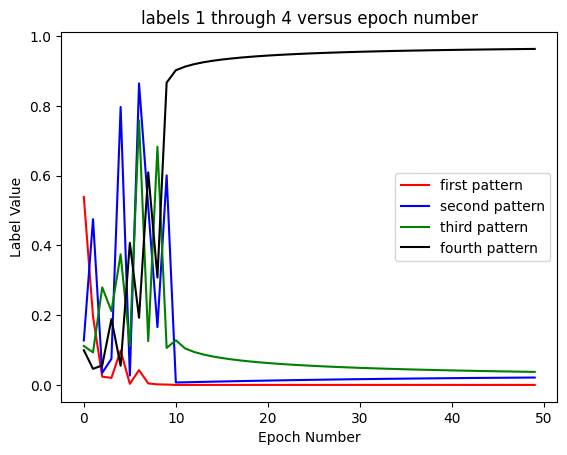

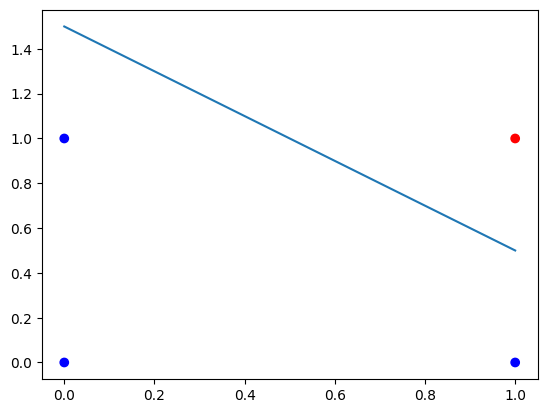

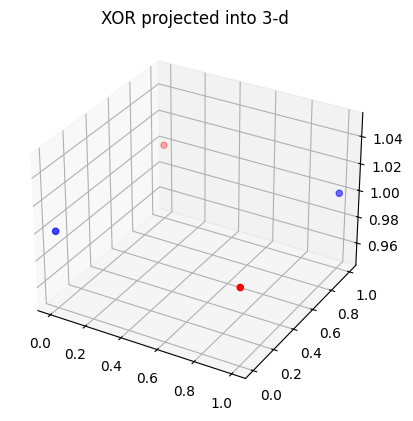

and_colors=['blue','blue','blue','red']


plt.scatter(x[:,0],x[:,1],c=and_colors)

y_intercept=1.5
x_intercept=1.5

slope=-y_intercept/x_intercept
plt.plot([0,1],[y_intercept,y_intercept+slope])

[<matplotlib.lines.Line2D at 0x7f7998235fd0>]
../../../../../_images/4345600327e510630d9afc445f18cd0fd2b868372807eb7bfff2ec2b2cc7e040.png
